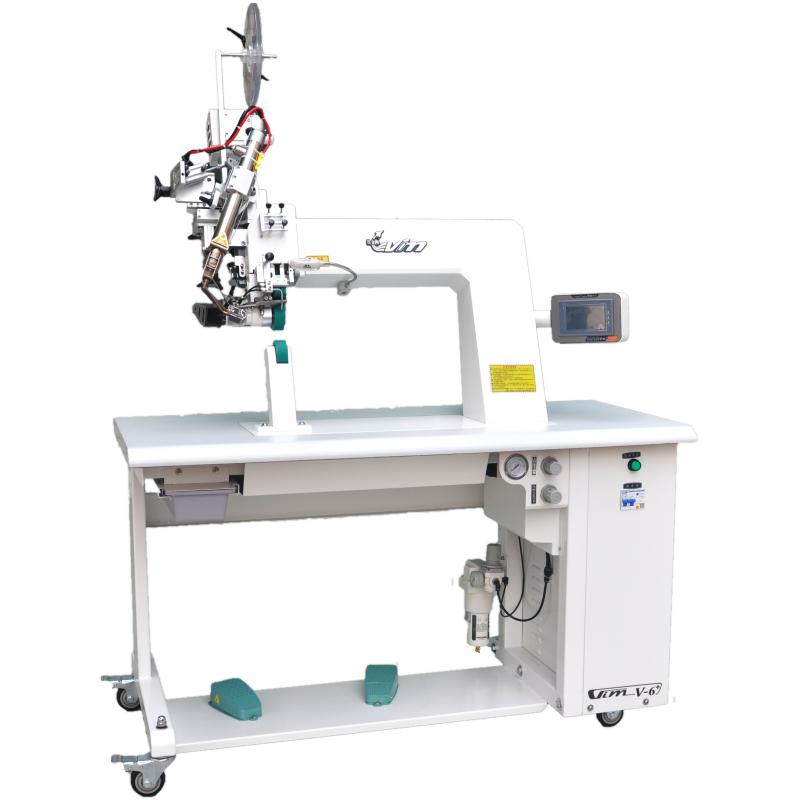

Hot air seam sealing machine V-6+
2020-12-04 730
產品參數/Product parameters
型號 | Model | V-6+(差速）(Speed Differential) |
電壓 | Voltage | AC220V50/60Hz |
額定功率 | Rating Efficiency | 2.8KW |
壓縮空氣 | Air Supply | 0.35-0.5MPa |
熱合速度 | Heat Sealing Speed | 1-24.8m/min |
風嘴最高溫度 | Maximum Temperature of Nozzle | 700℃ |
上下壓輪寬度 | Pinch roller Width | ?65×25mm |
外型尺寸 | Exterior size | 1300mm×600mm×1600mm |
凈重 | Net weight | 150kg |
可選滾輪 | Optional Size of Roller | 8-25mm |
V-6+性能參數
A．功率約2800W，根據發熱溫度而定，額定電壓：AC～220V，額定頻率50Hz。
B．發熱管最高溫度≤700℃。
C．本機總氣壓：0.35～0.5MPa。
D．上柱壓輪壓力為0.1～0.15 MPa。
E．速度：1~24.8m/min。
F．外形尺寸：1300×600×1530mm。
G．上輪壓降行程：18～25mm。
H．壓輪寬度：25mm（1英寸）。
I．壓輪直徑：65mm。
J．熱風槍嘴寬度：24mm。
K．噪音：小于80dbA。
當產品圖片和產品參數與實際產品不一致時，以實際產品為準，對此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
