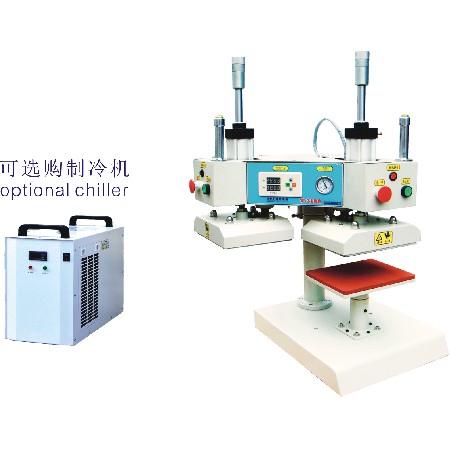

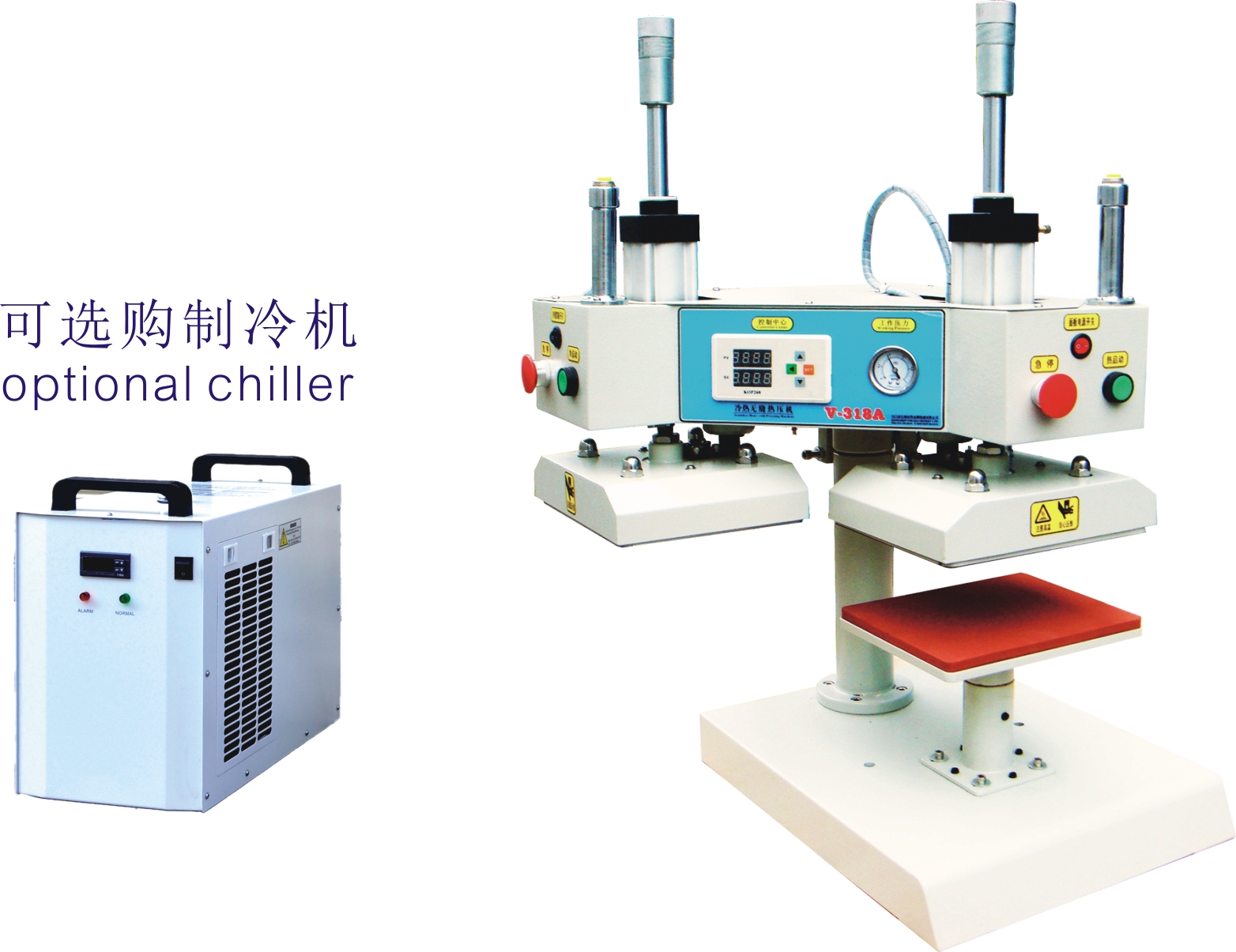

Hot and cold seamless hot press V-318A
2020-11-24 451
產品參數/Product parameters
型號 | Model | V-318A |
電壓 | Voltage | AC220V 50/60Hz |
額定功率 | Rating Efficiency | 2.2KW |
壓縮空氣 | Air Supply | 0.35-0.5MPa |
最高加熱溫度 | Maximum Temperature | 250℃ |
加壓時間 | Pressing Time | 1-99s |
熱壓板面積 | Pressing Area | 360mm×250mm |
升降行程 | Up and Down Travel | 90mm |
外型尺寸 | Exterior size | 730mm×710mm×1000mm |
凈重 | Net weight | 60kg |
V-318A性能參數
1) . 電壓：AC ～220 V 50 Hz
2) . 額定功率： 2200 W
3) . 氣壓：0.35～0.5 MPa
4) . 粘合溫度：常溫～250 ℃
5) . 加壓時間：1～99秒可調
6) . 最大工作面積：360mm×250mm（平面、可選）
7) . 升降行程：90mm
8) . 外觀尺寸：730mm（L）×710mm（W）×1000mm（H）
9) . 機身重量：60kg
當產品圖片和產品參數與實際產品不一致時，以實際產品為準，對此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
